Frameset

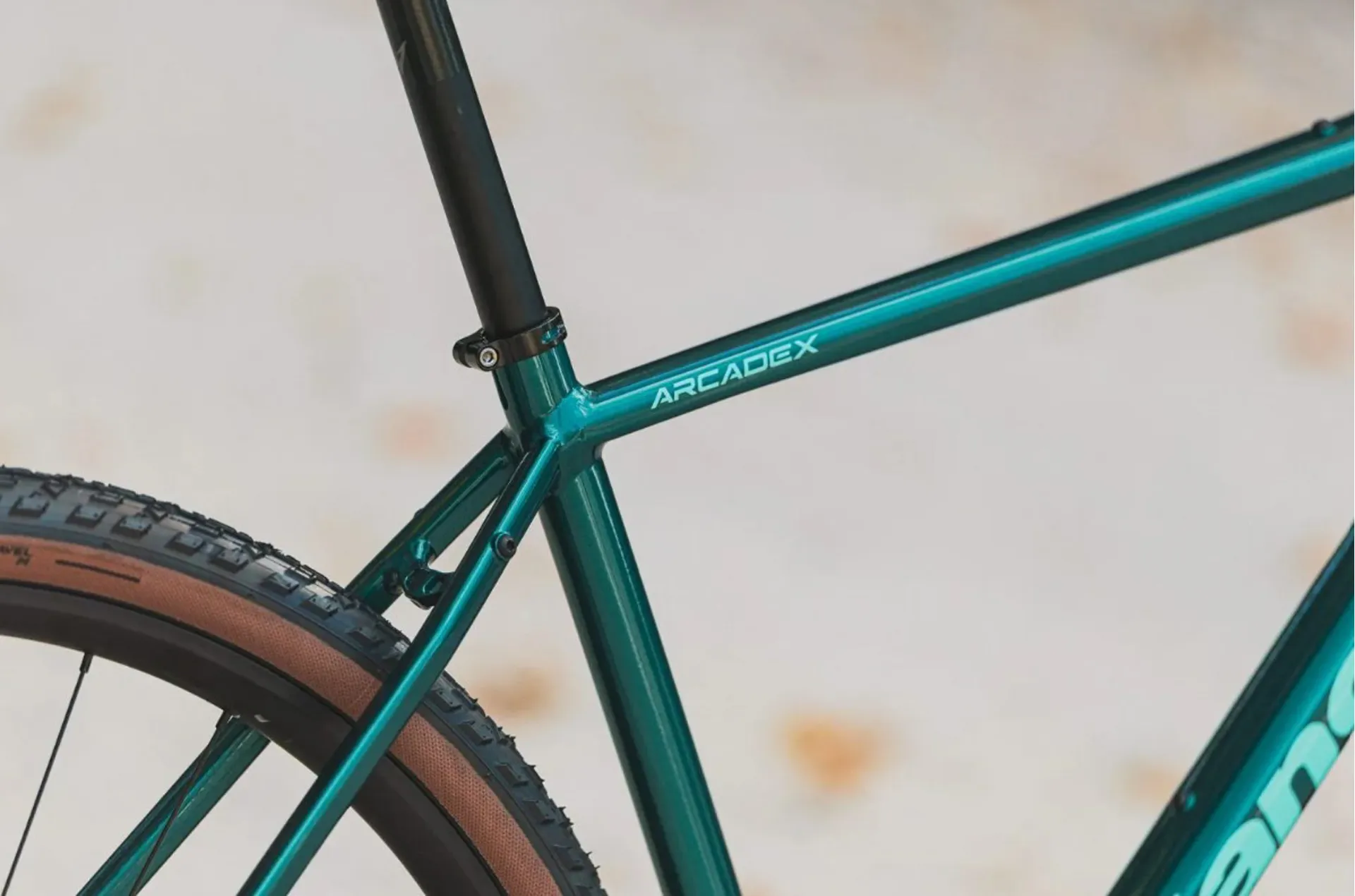

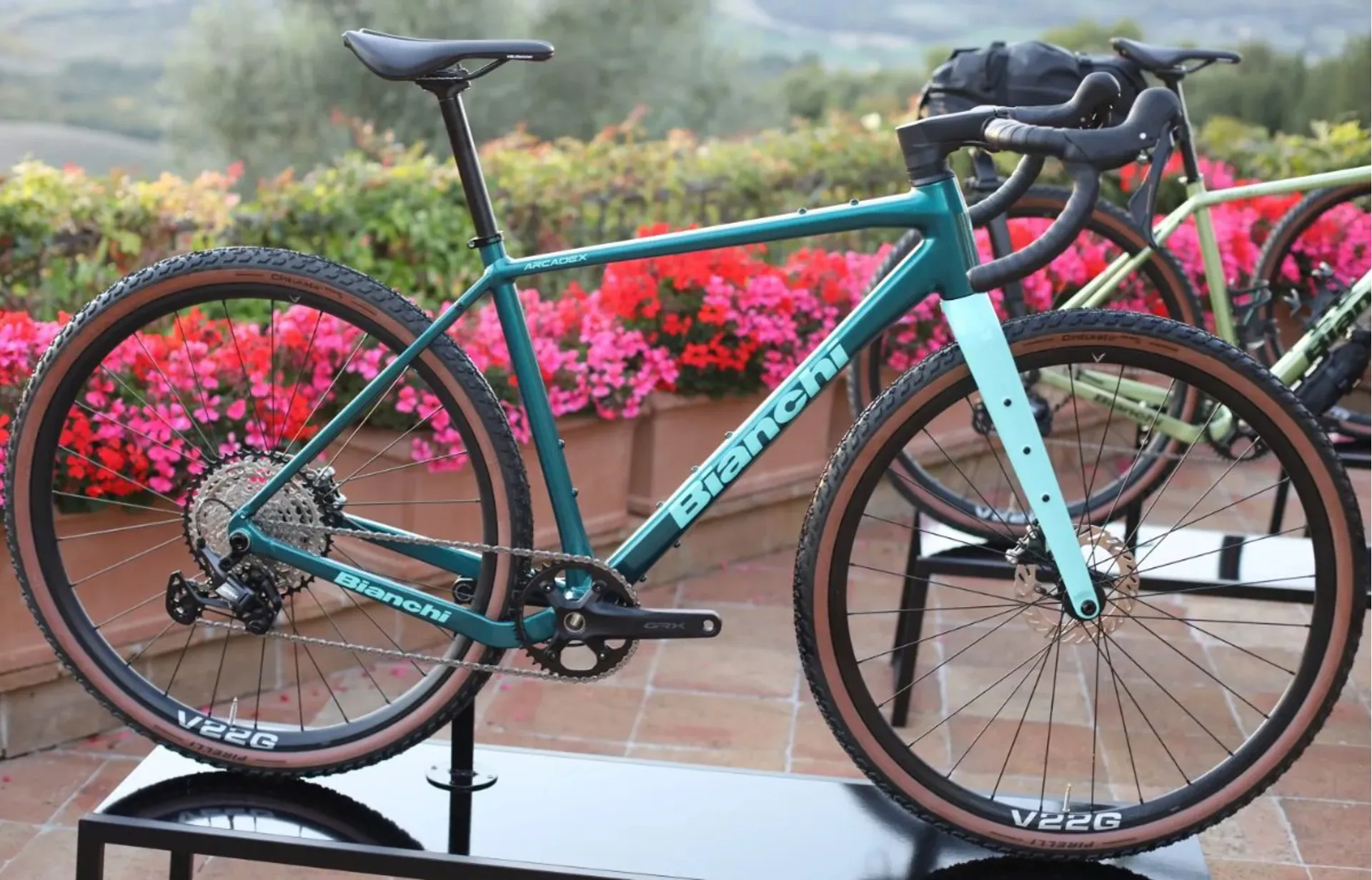

Frame - Bianchi Arcadex AL, aluminium, hydroformed tubes, tire clearance 50 mm, T47 Bottom bracket, rack and fender compatibility sizes XS- SM-MD-LG-XL
Fork - Bianchi Arcadex, Carbon, flat mount disc frake, thru axle 12x100 mm
Headset - Acros for internal cable routing
Drivetrain
Shifters - Shimano GRX, shifter lever ST-RX610, caliper BR- RX400
Rear Derailleur - Shimano GRX, RD-RX822, 12sp
Crankset - Shimano GRX, FC-RX610, 40T Crank length: 165 mm (XS-SM); 170 mm (MD-LG); 172.5 mm (XL)
Bottom Bracket - Token T47, 24 mm axle, 86.5 mm width
Chain - Shimano 105, CN-M7100
Cassette - Shimano SLX, CS-M7100, 10-51T, 10-12-14-16- 18-21-24-28-33-39-45-51T
Brakes
Brakes - Shimano BR-RX410 Hydraulic disc brake
Brake Levers - Included in the shifter
Rotor - FRONT: Shimano RT-CL700 Centre Lock, 160 mm / REAR: Shimano RT-CL700 Center Lock, 160 mm
Wheels
Wheels - Velomann V22G, Rim: Aluminium, 622x24c, 24h
Tire - Pirelli Cinturato Tanwall, 700x45
Cockpit
Stem - Velomann AL6061, rise -7° Size: 70 mm (XS); 80 mm (SM); 90 mm (MD); 100 mm (LG); 110 mm (XL)
Handlebar - Velomann Gravel, Aluminium, diameter 31.8 mm, reach 70 mm, drop 130 mm, flare 16 deg Size: 400 mm (XS-SM); 420 mm (MD-LG); 440 mm (XL)
Grips / Extensions - Bianchi Hexagon tape, 2.5 mm thickness, black
Saddle
Seatpost Clamp - Bianchi Aluminium, diameter 31.8 mm
Seatpost - Velomann Aluminium, 27,2 mm, Seatback 0 mm length: 300 mm (XS); 350 mm (SM-LG); 400 mm (XL)
Saddle - Selle Royal SRX Open
Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
