Frameset

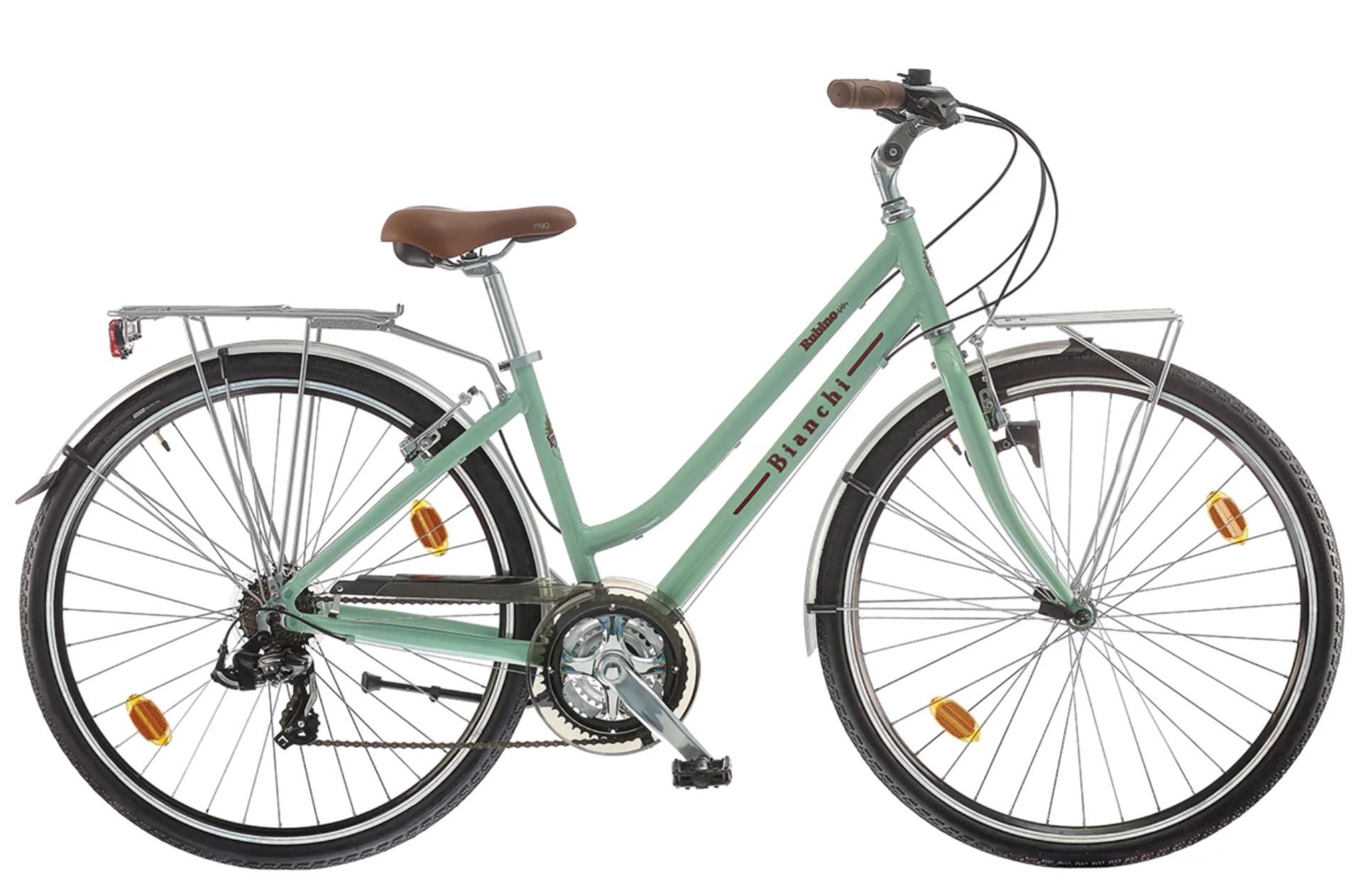

Frame - Spillo Rubino Deluxe 28″Rigid Alloy 6061 1.1/8″ size: 47-55, O.L.D.135mm
Fork - 28″Road 1.1/8″
Headset - 1.1/8″X26T Steel Silver
Drivetrain
Shifters - Shimano 7-Speed Ez-Fire plus, 2F-alloy, for V- Brake, black, Index Wire/2050mm
Left Shifter 3-Speed Ez-Fire plus, 2F-alloy, for V-Brake, black, Index Wire/1800mm
Crankset
Crankset TCXE6-VZ(A4P6) 48X38X28 - black/steel silver/steel silver
Cassette - Shimano AMFTZ5007428 7-speed 14-28 w/thread
Rear Derailleur - Shimano, RD-TY500, Tourney, 6/7-speed, direct attachement type, w/wheel type cable guide, bulk
Bottom Bracket - CH 52-68 diagonal cotterless/bolt L:127mm 4pcs w/bolt ENM
Rear Derailleur - Shimano, FD-TY510-TS3, Tourney, top-swing, dual-pull,for rear 6/7speed, band type (w/31.8mm adapter), CS angle:63-66 for 48T.CL:47.5/50mm
Chain - Shimano CN-LG500, 10sp
Brakes
Brakes - V-brake set HJ- 621ADX-SV silver Al. L:103mm 90/2 pipes ENM w/ ID 5mm Pipe cap
Brake Lever - included in the shifter
Hubs
Rear: KT-A15F Alloy silver 36H, silver QR, MQSP141NSI A:109-B:126-C:149 M9X100X108
Front: KT-A1ER Alloy Lathing natural/36H /quick- release 135X145 Threaded FW:40,5mm
Cockpit
Stem - MTS-C299N-5 (C297) Adjustable Alloy High polished Silver E:90 DIA:25.4 L:180mm
Handlebar - HL-NR-AL-16 High polished an. Silver alloy W:590 R:26 DIA:25.4 BS:33 DG silver
Wheels
Wheels - 28/622X19 Freeway D-Wall Al balck 36H D:6.5 HBP
Tire - 700X35C 37-622 C-1880 Xpedium
Saddle
Seatpost - SP-242 Alloy silver L:350mm DIA:27.2mm
Saddle - Selle Royal RIO renna Brown (8073), RVS, silver steel rail, w/clamp
Seatpost Clamp - Alloy Silver Dia:31.8mm Quick-Release, Silver
Accessories
Pedals - body/PP-Black 2#, 9/16″ Boron, BS Ball-Type EN
Front Light - Spanninga JOS Illico
Mudguards - 28″ RAPIDO BIA2822-00177 46mm Silver foil,1Nose
rear mudflap aid sliding bridge zinc coated
Rear Light - SPARK RED
Kickstand - CD-122 Alloy, 20”-28” adjustable, Silver/esge black allen bolt dacromet
Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
